electriciteits schema

Berichtdoor Raytheman » 29 jun 2011, 22:33

Heeft iemand misschien -digitaal- een electriciteits schema voor de 200D ? Liefst hoge resolutie ;)
Wil graag eens een en ander uitprinten en -zoeken
Die Schwaben bauen die besten Auto's der Welt
Avatar gebruiker
Raytheman
Gold Boarder
Gold Boarder

Berichten: 386
Geregistreerd: 05 sep 2010, 22:21
Woonplaats: Zwaag
Roepnaam:
Type wagen: Pagode W113
Bouwjaar: 1975
Automaat: Nee
LPG: Nee
Omhoog

Re: electriciteits schema

Berichtdoor Bogent » 30 jun 2011, 08:23

Mischien heb je om te beginnen iets aan.
Bogent

Omhoog

Re: electriciteits schema

Berichtdoor Raytheman » 30 jun 2011, 09:10

Hier heb ik zeer zeker wat aan! Helemaal goed :)

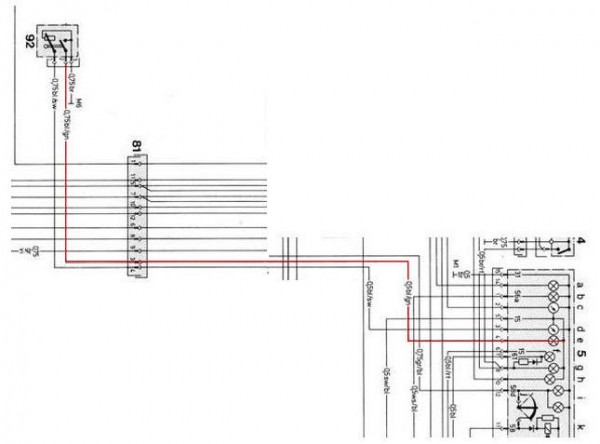

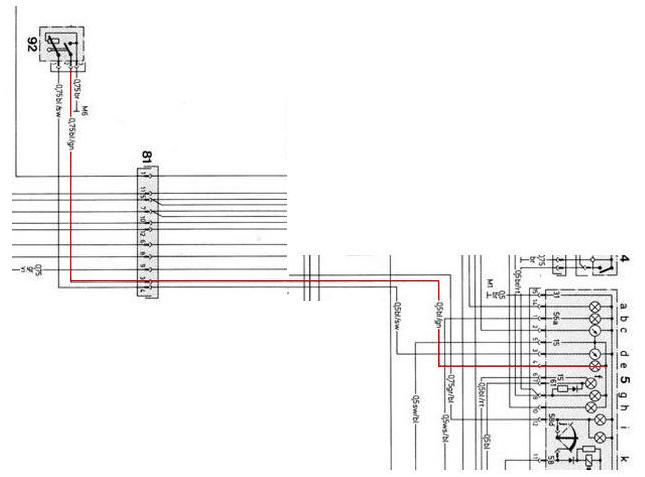

Heel erg bedankt. Nu weet ik tenminste waar ik kan gaan zoeken; heb al wat gevonden; rechts het dasboardlampje en links de brandstofvlotter
Bijlagen
Die Schwaben bauen die besten Auto's der Welt
Avatar gebruiker
Raytheman
Gold Boarder
Gold Boarder

Berichten: 386
Geregistreerd: 05 sep 2010, 22:21
Woonplaats: Zwaag
Roepnaam:
Type wagen: Pagode W113
Bouwjaar: 1975
Automaat: Nee
LPG: Nee
Omhoog

Re: electriciteits schema

Berichtdoor Bogent » 01 jul 2011, 08:21

Ja het is niet specifiek diesel maar dat wijkt alleen op gebied van de ontsteking en voorgloei systeem af de rest is toch het zelfde.
Bogent

Omhoog
