Wat is dit?

Alle techniek (mechanisch, elektronisch) zaken horen hier thuis.

Wat is dit?

Berichtdoor Rooie » 11 feb 2013, 20:51

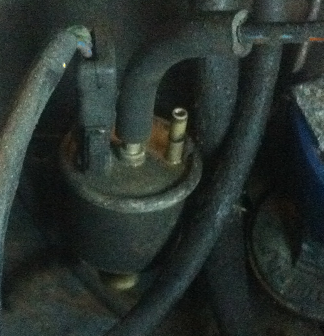

Wie weet wat dit is?
wie ow wie weet dit

een van de slangen is aangesloten op de carburateur.
De andere aansluiting zat alleen een rubber op.
misschien dat een van jullie weet wat het is en waar het op moet.

groeten Pieter
Rooie
Fresh Boarder
Fresh Boarder

Berichten: 17
Geregistreerd: 05 aug 2012, 16:35
Woonplaats: Zwolle
Roepnaam:
Type wagen: 230T
Bouwjaar: 1968
Automaat: Nee
LPG: Ja


Re: wat is dit?

Berichtdoor Pier 50 » 11 feb 2013, 20:59

lijkt wel een vacuum sensor
Avatar gebruiker
Pier 50
Gold Boarder
Gold Boarder

Berichten: 494
Geregistreerd: 03 okt 2011, 18:28
Woonplaats: Veendam
Roepnaam:
Type wagen: 240D
Bouwjaar: 1971
Automaat: Nee
LPG: Nee
Opmerkingen / andere wagens:


Re: wat is dit?

Berichtdoor Jeroen » 12 feb 2013, 10:11

Gokje,
Is dit de sensor die de vervroeging aanstuurt gaseerd op atmosferische druk. Met andere woorden een hoogtemeter.

Een kant is aangesloten op de carburator, en meet vacuum druk op het inlaatgedeelte. De andere kant is open naar de atmosfeer. Het drukverschil, afhankelijk van de hoogte waarop je je bevindt is een maat voor hoe de vervroeging moet worden aangepast om de motor goed te laten draaien. Er komt een elektrisch signaaltje uit wat hiertoe wordt gebruikt.

Wist niet dat dit ook de W123 zat, dus wellicht heb ik het mis. Maar zit definitief op mijn 1986 Alfa Romeo Spider.

Jeroen
Avatar gebruiker
Jeroen
Platinum Boarder
Platinum Boarder

Berichten: 1321
Geregistreerd: 09 apr 2006, 20:30
Woonplaats: Spijk, gemeente Lingewaal
Roepnaam:
Type wagen: 200
Bouwjaar: 1982
Automaat: Nee
LPG: Nee
Opmerkingen / andere wagens:
